1. Introduction

Residual tricuspid regurgitation (TR) may occur in up to 30% of patients after surgical tricuspid annuloplasty [1, 2]. However, re-operations for TR are rarely performed [1]. The low rate of re-operation appears to be due the high operative risk [1, 2]. Transcatheter edge-to edge repair (TEER) is a novel therapy for severe tricuspid regurgitation [3, 4]. The TriClip® (Abbott, Santa Clara, CA, USA) and the PASCAL® Implant System (Edwards Lifesciences, Irvine, CA, USA) are available to perform an edge-to-edge repair of the tricuspid valve. We here describe a case of a patient who was treated with the TriClip® device for recurrent tricuspid regurgitation after previous implantation of tricuspid prosthetic annuloplasty ring and mitral valve replacement, in whom a right ventricular lead was present due to complete AV block.

2. Time Line

3. Case Presentation

The patient was 71-year-old woman with a history of severe mitral and tricuspid regurgitation. 8 years prior, she had undergone mitral valve replacement (Perimount Magna Ease 29 mm) and tricuspid valve prosthetic annuloplasty ring (Edwards MC3-ring 32 mm). The patient complained of worsening right heart failure symptoms, with severe peripheral edema, and shortness of breath (New York Heart Association (NYHA) Functional Class III-IV). The was hospitalized several times for intravenous diuretic therapy due to right sided heart failure in the past year. Upon admission, physical examination revealed peripheral edema, jugular venous distension, and irregular heartbeat. The electrocardiogram showed atrial fibrillation. Echocardiography demonstrated normal left ventricular function. The mitral valve did not show significant abnormalities. A massive tricuspid regurgitation Grad V was documented (vena contracta width of 11 mm) (Figure 1A). The patient was evaluated by the Heart Team as to be at high risk for re-surgery of the tricuspid valve. TEER was performed by using the TriClip® device (Abbott, Vascular GmbH). During the TEER procedure, it was difficult to visualize the tricuspid leaflets in transesophageal echocardiography (TEE) due to shadowing from the prosthetic annuloplasty ring (Figure 2). This was resolved by utilizing transgastric visualisation (Figure 2) during deployment of the TriClip®. The right ventricular lead was visualized by X ray and echocardiography during the procedure (Figure 3). The device was implanted posterior to the RV lead which was in a central and anterior position into the tricuspid valve. TR was reduced to a Grad II (Figure 1B). Hemodynamic improvement was documented intraoperatively by an increase in arterial pressure up to 15 mmHg immediately after deployment of the Clip. Transvalvular gradient was 1,5 mmHg at the end of the procedure. Pacemaker interrogation did not show alteration of RV sensing or pacing.

After 1 month of follow-up, echocardiography demonstrated TR grade II without stenosis (transvalvular gradient of 1 mmHg). The patient reported that physical capacity and dyspnea had improved (NYHA functional class II).

Figure 1 A: Transesophageal echocardiography of the tricuspid valve showing the prosthetic annuloplasty ring and severe tricuspid regurgitation with color Doppler.

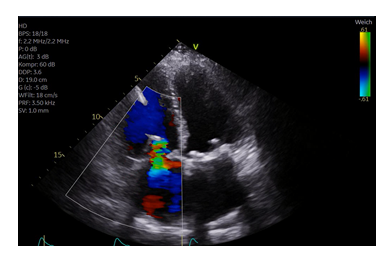

Figure 1 B: Transesophageal echocardiography of the tricuspid valve after TEER showing reduced tricuspid regurgitation in the presence of the prosthetic annuloplasty ring with color Doppler.

Figure 2A: Transgastric view (short axis) of the tricuspid valve showing the three leaflets of the tricuspid valve.

Figure 2B: Transgastric view of the tricuspid valve with color doppler showing the tricuspid regurgitation.

Figure 2C: Implanted TEER device with a clearly visible valvular bridging between the septal and anterior leaflet by the implanted TriClip®, visible as an echo intense structure within the produced valvular bridge. The pacemaker lead is visible anterior and oblique to the TEER.

Figure 2D: Color Doppler in the transgastric view using two different angles showing the marked reduction in tricuspid regurgitation after TEER.

Figure 3A: Fluoroscopy in anterior-posterior projection of the TEER system in addition to the bioprosthetic mitral valve and the prosthetic annuloplasty ring of the tricuspid valve. The DDD pacemaker leads are also clearly visible.

Figure 3B: Fluoroscopy in left-lateral projection (30°) of the implanted TEER system in the prosthetic annuloplasty ring of the tricuspid valve. The DDD pacemaker leads are also clearly visible.

Figure 3C: Fluoroscopy in anterior-posterior projection of the implanted TEER system in the prosthetic annuloplasty ring of the tricuspid valve. The DDD pacemaker leads and the bioprosthetic mitral valve are clearly visible.

4. Discussion

Residual tricuspid regurgitation occurs in many patients early after surgical tricuspid annuloplasty [1]. In particularly, non-ring annuloplasty as the DeVega technique, is associated with worsening of tricuspid regurgitation in up to 30% of all patients [1, 2]. In contrast and despite substantial signs of right sided heart failure and severe tricuspid regurgitation, surgical re-operation for tricuspid regurgitation are rarely performed due to the high interventional risk [4, 5]. Recently, TEER has demonstrated to be a decent alternative option for patients with a failed annuloplasty repair. TEER following surgical tricuspid valve repair has been reported in two cases describing the off-label use of the MitraClip® device [6, 7]. In another publication, the PASCALR device was used for TEER of recurrent TR after ring annuloplasty of the tricuspid valve [8]. Further, the TriClip® device was used for TEER in a patient after failed surgical suture annuloplasty of the tricuspid valve [9]. Recently, the results of the TRILUMINATE trial were published including a total of 350 patients [10]. One patient of this cohort had a history of tricuspid surgery. However, more details were not published. Furthermore, the presence of a pacemaker lead was defined as an exclusion criterion in this trial [10].

In the present case, the presence of a prosthetic annuloplasty ring and bioprosthetic mitral valve complicated TEER by massive shadowing in the conventional LVOT views. Therefore, a combined approach using the transgastric echocardiography views and fluoroscopy allowed device navigation and successful TEER in this particular setting. Nevertheless, echocardiography is of upmost importance to guide the TEER device through the right atrium into the right ventricle. In the TRILUMINATE study, 25% of TEER patients had prior mitral valve surgery [11]. Thus, similar to the present case these prior mitral valve interventions alone might also cause shadowing in the area of the tricuspid valve. Nevertheless, TEER is still possible in patients with prior mitral valve procedures. The use of intracardiac echocardiography might serve as an alternative tool to overcome some of shadowing issues of transesophageal echocardiography [12]. However, insertion of intracardiac echocardiography probe requires an additional access port and it remains unclear if the presence of an intracardiac echocardiography probe might mechanically interfere with the TEER device. The follow-up in the present case is rather short, which is a limitation. Thus, the longer-term outcome cannot be reported. However, for the observed first month after the procedure TEER remained unchanged with a sufficient results and TR reduction and clinical improvement.

5. Conclusion

TEER is feasible in severe TR following a prosthetic annuloplasty ring procedure of the tricuspid valve even in the presence of right ventricular pacemaker lead. Thus, TEER appears as a treatment option for patients with a failed prosthetic annuloplasty repair. Nevertheless, more data about TERR in larger cohorts and longer follow-up are needed in this specific subcohort.

Consent

The authors confirm that written informed consent for the submission and publication of this case, including images, has been obtained from the patient in the line with COPE guidance.
