1. Introduction

The natural bacteriocin nisin is a food preservative made by the lactic acid bacteria species Lactococcus lactis, commonly added to cheeses, meats, and beverages to slow spoilage caused by Gram-positive bacteria. It has been designated by the FDA as Generally Recognized As Safe (GRAS) [1]. However, numerous studies by us and others have shown that purified nisin also has potent broad-spectrum antimicrobial activity against non-foodborne pathogens while retaining its safety profile in both humans and animals [2-5]. For example, we demonstrated that nisin can interfere with pathogenic oral biofilm structure and function [2,6,7], which is a crucial activity for restoring oral eubiosis, as biofilms contribute to oral disease by protecting the bacteria from environmental stresses, promoting horizontal gene transfer, and altering commensal population structure [8,9]. Nisin reduces oral/periodontal inflammation in dogs and rodents [10,11], directly modulates host immune responses in mice [10,12], and has been used to effectively treat mastitis [13,14], neuroinflammation [15], non-alcoholic fatty liver disease [16], and respiratory tract infections in humans, cows, or rodents [13,14,17]. Further, our study using a mouse model of head and neck squamous cell carcinoma (HNSCC) showed that nisin (95% purity), a highly pure and more water-soluble form of the compound, can reduce tumor burden in mice, extend their lifespan, and be ingested at high concentrations [18]. The study also revealed that nisin decreased HNSCC cell proliferation, orasphere formation, and angiogenic sprouting in a dose-dependent manner.

Mechanistically, we found that nisin significantly and preferentially reduced proliferation and increased apoptosis of HNSCC cells versus that of primary oral keratinocytes and it inhibited HNSCC tumor growth in mice via upregulation of the cation transporter and apoptosis mediator CHAC1 [19]. We further discovered that nisin reduced periodontal pathogen-mediated oral tumor aggressiveness in mice [20]. In addition, it has been reported that nisin also exhibits immunomodulatory activity by decreasing the levels of pro-inflammatory cytokines, such as IL-5 and IL-13, promoting IFN-γ production, and suppressing Th2 cellular immune responses [21,22]. Given that HNSCC is characterized by aberrant inflammasome expression [23-25] and that nisin can selectively downregulate markers of inflammation in multiple human cell types with minimal cytotoxicity [12], together with its demonstrated in vivo protection against HNSCC tumor progression, the clinical benefit of nisin as a therapeutic agent against OSCC warrants investigation.

Nisin is being considered as a therapeutic agent given its in vitro and in vivo anti-tumorigenic effects. Our previous studies and reviews [18-20,26] highlight that nisin preferentially modulates HNSCC cell proliferation and apoptosis versus primary oral keratinocytes in a dose- and time-dependent manner [19] and significantly reduces tumor burden in an HNSCC mouse model without inducing toxicity [18-20]. Together with the established safety profile of nisin as an FDA-approved food additive, its known biomedical applications [26], its safety in animals [22], its lack of toxicity to different oral cells [2], and its effectiveness against HNSCC cells and tumors, these data support the premise that nisin could be clinically beneficial in the treatment of human oral cancers. Further, in 2 recent case reports of humans with tongue OSCC [27,28], we document that nisin exerts beneficial effects as a therapeutic for oral cancer.

Given this background, we are currently conducting the first-in-human clinical trial of nisin in OSCC patients to establish tolerability and feasibility of the treatment regimen and validate the results of prior animal studies highlighting its anticancer properties (ClinicalTrials.gov; NCT06097468). To this end, we plan to examine the pharmacokinetic properties of nisin by analyzing nisin levels in urine samples from study subjects. The current case report was undertaken to develop an assay for this purpose. Urine was collected from one healthy individual overtime over 2 days following the oral ingestion of a therapeutic dose of nisin, and nisin metabolites were monitored via mass spectrometry analysis to re-confirm the short nisin half-life and determine its rapidly waning excretion in the urine; nisin’s short half-life was previously established in animal serum samples prior to FDA approval [29].

Nisin mediates its action in part by interactions with phospholipid bilayers on cellular membranes [30-34]. Prior pharmacokinetic and pharmacodynamic information indicate that nisin can be absorbed via epithelial tissues [31,34]. Nisin can be absorbed through the vaginal epithelium into the circulation following intravaginal administration in rabbits [29]. Maximum levels of nisin were detected in blood samples after 1 h of treatment. The levels declined to baseline after 12 h, suggesting rapid systemic turnover of nisin. Further, Dreyer et al. [35] reported the migration of nisin across gastrointestinal epithelial and vascular endothelial cells in vitro, showing its potential to cross the gut–blood barrier. Nisin was also partially stable in the harsh conditions of the gastric environment [30]. Thus, nisin can be absorbed through the orodigestive tract but is likely to be rapidly excreted in the urine. This was further evaluated by the current study.

A variety of methods have been used to detect nisin. Most methods of nisin detection have focused on its assessment in culture media using assays, such as agar diffusion [36,37], ELISA methods [38-40], and bioassays [41-43] or by mass spectrometry [44]. There are only a few reports on the detection of nisin in food products, such as cheese and milk, and its detection was via mass spectrometry [45-48]. Specifically, liquid chromatography coupled to mass spectrometry (LC-MS/MS) was used to quantify nisin in food/cheese [45-48]. Ko et al. [48] developed a new LC-MS/MS pretreatment protocol for analysis of nisin A and nisin Z content in cow milk and validated this approach. Although a variety of analytical methods have been used for nisin detection, LC/MS enables an accurate determination of the molecular mass of target molecules in crude samples and is therefore an effective method for the detection of bacteriocins [44,49]. However, to our knowledge, there are no reports on the detection of nisin following its ingestion by humans and its detection in urine following its excretion. Our detection approach was similarly based on LC-MS/MS methodology. Western blotting analysis was also performed on the urine samples to further validate the mass spectrometry findings.

2. Case Presentation and Materials and Methods

2.1 Nisin oral administration and urine collection

Nisin ZP (Handary S.A; Brussels, Belgium) was ingested by a 59-year-old healthy white female volunteer. In total, 20 grams of nisin were ingested in two doses of 10 grams/150 ml of water each at noon and 6 pm; which were well tolerated without any adverse events. Sterile urine was then collected at 4 pm (Sample 1) and 8 pm (Sample 2) on the first day of ingestion, and at 6 am (Sample 3), 8 am (Sample 4), 3:30 pm (Sample 5), and 9 pm (Sample 6) the next day. Urine samples were frozen at -80^oC immediately upon collection (Table 1).

Table 1: Nisin Z Intake and Urine samples.

2.2 Sample preparation protocol for Mass Spectrometry

Six urine samples, including both standard and nisin-spiked samples, were thawed/prepared then centrifuged at 4000xg to pellet large solute materials/proteins. The supernatant from each sample was then filtered using a 10 kDa MWCO Amicon® Ultra Centrifugal Filter to further remove larger protein molecules. The filtered urine was lyophilized under stringent conditions (-50 °C and 0.1 Torr) for 48 hours to ensure complete dryness. The lyophilized cake was resuspended in 0.1% Trifluoroacetic Acid (TFA) for sample homogenization. A subsequent centrifugation step at 12000xg for 5 minutes allowed for the separation of any remaining particulate matter, with the supernatant being carefully transferred into a clean tube. The supernatant underwent desalting using C18 Stage Tips, which were prepared by equilibration in 1% TFA and 50% Acetonitrile (ACN), followed by a washing solution of 5% ACN and 0.1% TFA, and an elution in 40% ACN with 0.1% TFA. The peptides eluted were vacuum dried and then resuspended in 5% Formic Acid (FA).

2.3 Mass Spectrometry

Nisin peptide abundance was measured using liquid chromatography coupled to mass spectrometry (LC-MS/MS). After reconstitution in formic acid, the samples were fractionated online by C18 reversed phase chromatography using a Dionex U3000 HPLC to deliver an increasing gradient of acetonitrile [50]. Peptides were eluted and electrosprayed directly in a Thermofisher Fusion Lumos mass spectrometer. Data were acquired using a parallel reaction monitoring strategy in which the +5 precursor ion of full-length nisin was analyzed by MS/MS [51]. The precursor and fragment ion masses for +5 charge state of nisin utilized for Parallel Reaction Monitoring are shown in Table 2. Extracted ion chromatograms were generated for each fragment ion using the Skyline software package [52]. The area under the curve for each fragment ion was summed to calculate an estimate of nisin abundance.

Table 2: Precursor and fragment ion masses for +5 charge state of nisin ZP utilized for parallel reaction monitoring.

2.4 Sample preparation for Western blotting

The urine samples were filtered using a 10 kDa MWCO Amicon® ultra centrifugal filter (Cat No: UFC201024, Millipore). The filtrate was used to analyze nisin, while the top retained fraction was used to check for potential nisin-binding proteins that might bind to and shift nisin to a higher molecular weight.

2.5 Western blotting

Western blot analyses were performed on the filtrate and top fractions from the urine samples to detect nisin and nisin binding proteins, respectively. Samples were normalized by equal protein concentration (125 μg) and then mixed with 4X Laemmli sample buffer (Cat. No. 1610747, Bio-Rad) containing β-ME (3:1). The proteins were resolved by 16% Tricine SDS-PAGE (Invitrogen, Cat No. EC6695) then transferred to Immobilon-P membranes. The blots were probed with a custom polyclonal affinity-purified rabbit nisin antibody (proprietary to Kapila lab). The antibody against nisin was produced by co-immunizing rabbits with four short nisin peptide sequences (Pacific Immunology, Ramona, CA). Blots were incubated with horseradish peroxidase-conjugated anti-rabbit antibody (SC-2004, Santa Cruz Biotechnology) and then developed with the ECL-plus detection system (Thermo Fisher Scientific).

3. Results

Nisin abundances are shown in Figure 1 and Figure 2. For Figure 1, peptide abundances were calculated after analyzing known amounts of nisin peptide (60, 120, 250, 500 and 1000 ng) by LC-MS/MS. In this case, nisin was detected at all concentrations but saturated quickly. The limit of detection is likely to be much less than 60 ng and should be explored in future experiments. For Figure 2, nisin was measured in urine samples. Nisin was detected in samples 1-4 but not 5-6. The intact +5 precursor ion chromatograms and fragment ions following collision-induced dissociation of the urine samples and nisin-spiked samples are shown in Supplemental Figures (Figures S1-S10) and additional molecule transition results are shown in the Supplemental Table (Table S1).

Figure 1: LC-MS/MS analysis of nisin ZP standards. Graph showing nisin abundances in known standards analyzed by LC-MS/MS. The area under the curve for each fragment ion was summed to calculate an estimate of nisin abundance.

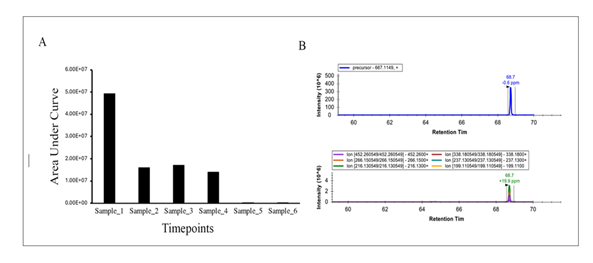

Figure 2: LC-MS/MS Analysis of nisin peptide fragments in urine samples. (A) Graph showing nisin detection in urine samples. (B) Representative extracted ion chromatograms of the intact +5 precursor ion and fragment ions after collision-induced dissociation of the precursor for urine for sample 1.

We then further analyzed the presence of nisin in urine samples using immunoblotting with a nisin-specific antibody. Notably, we detected nisin in sample 1 at approximately 3.3 kDa (Figure 3B). We did not detect nisin in samples 2 through 6, thereby showing waning levels of nisin in the urine over time similar to the MS results. Our Western blot results also revealed a high molecular weight nisin-positive band at approximately 40 kDa in sample 1 and to a lesser degree in sample 2, suggesting the presence of a potential nisin-binding protein that likely binds to and shifts nisin to a higher molecular weight position (Figure 3A).

Figure 3: Western blot analysis of nisin in urine samples. The urine samples were filtered using a 10 kDa MWCO Amicon® ultra centrifugal filter. Representative immunoblots show nisin’s presence in >10 kDa fractions (A) and <10 kDa fraction samples (B). Immunoblotting was performed using an anti-nisin antibody. Purified nisin 2.5 mg was loaded onto lane 1 as a positive control, and 125 mg total protein was loaded for each urine sample.

4. Discussion

Since nisin was detected in the urine samples in the early time points (Samples 1-4), namely from 4-20 hours after the first ingestion and up to 14 hours after the second ingestion, this indicates that nisin is metabolized and excreted quickly with maximal levels detected as early at 4 hours. Although urine samples from earlier time points prior to 4 hours were not collected, earlier samples might have revealed nisin presence even earlier and at higher levels; potentially showing greater excretion and even faster turnover. Urine sample collection earlier than 4 hours may be beneficial in the future. Furthermore, consistent with the mass spectrometry data, the immunoblotting data also revealed a fast turnover of nisin. This is the first report of nisin detection in human urine following its ingestion and the first report of urine excretion profiles in a human. These data support earlier reports showing that nisin has a fast turnover. Maximum levels of nisin were detected in blood samples after 1 h of treatment/intravaginal administration in rabbits [29]. In rabbits, the levels declined to baseline after 12 hours, suggesting rapid systemic turnover of nisin. Thus, nisin dosing can be absorbed through the orodigestive tract but is rapidly excreted in the urine.

It has been reported that nisin remains intact as it passes through the porcine gastrointestinal tract when ingested orally, as confirmed by mass spectrometry data. This was observed for both encapsulated nisin- and nisin powder-treated groups at 24, 48, and 72 hours [53]. Like other reports of nisin detection with LC-MS/MS, this project employed similar methods to successfully detect nisin and its fragments in urine samples [44-49]. The ongoing clinical trial (ClinicalTrials.gov; NCT06097468) of nisin in oral cancer patients and studies with larger sample sizes will be helpful to further demonstrate nisin’s fast turnover in a unique cohort of oral cancer patients and in healthy cohorts.

5. Conclusions

Given that nisin is a commonly used food preservative that has been designated by the FDA as Generally Recognized As Safe (GRAS) since 1988 and has been approved by the Joint Food and Agricultural Organization/World Health Organization as a safe food additive since 1969, plus numerous studies by us and others have shown that nisin has anticancer properties and potent broad-spectrum antimicrobial activity against non-foodborne pathogens while retaining its safety profile in both humans and animals, knowledge about nisin’s pharmacokinetic properties in humans was warranted. In this important case report we document that orally ingested nisin can be detected early in human urine after oral ingestion, indicating a fast turnover and excretion of nisin in the human body. To the best of our knowledge, this constitutes the first report of nisin's detection following human ingestion and its presence in urine after excretion.

Ethics approval and consent

Consent was obtained from the participant.

Consent for Publication

All authors and participant consent to this publication.

Availability of data and material

All data and material are provided in the manuscript.

Competing interests

The authors declare that they have no competing interests.

Funding

This work was supported by NIH funding (grant R01CA269950 to Yvonne L. Kapila).

Authors’ contributions

YK was responsible for project conception and study oversight. PK and AK conducted the experiments and collected the data. YK, JW, PK, and AR analyzed the data. YK and PK were primarily responsible for the final content. All authors have read and approved the final manuscript.

Acknowledgments

Not applicable.

References

1. Food additive status list 2019 [cited 2020 Aug 21]. Available from: https://www.fda.gov/food/food-additives-petitions/food-additive-status-list#ftnN.
2. Shin JM, Ateia I, Paulus JR, et al. Antimicrobial nisin acts against saliva derived multi-species biofilms without cytotoxicity to human oral cells. Front Microbiol 6 (2015): 617.
3. Hagiwara A, Imai N, Nakashima H, et al. A 90-day oral toxicity study of nisin A, an anti-microbial peptide derived from Lactococcus lactis subsp. lactis, in F344 rats. Food Chem Toxicol 48 (2010): 2421-8.
4. Sahl HG BG. Multiple activities in natural antimicrobials-multiple activities of natural agents such as defensins and bacteriocins suggest a change in strategy when developing new antimicrobials. Microbe 3 (2008).
5. Field D, Begley M, O'Connor PM, et al. Bioengineered nisin A derivatives with enhanced activity against both Gram positive and Gram negative pathogens. PLoS One 7 (2012): e46884.
6. Kajwadkar R, Shin JM, Lin GH, et al. High-purity Nisin Alone or in Combination with Sodium Hypochlorite Is Effective against Planktonic and Biofilm Populations of Enterococcus faecalis. J Endod 43 (2017): 989-94.
7. Radaic A, Ye C, Parks B, et al. Modulation of pathogenic oral biofilms towards health with nisin probiotic. J Oral Microbiol 12 (2020): 1809302.
8. Marsh PD, Zaura E. Dental biofilm: ecological interactions in health and disease. J Clin Periodontol 44 (2017): S12-S22.
9. Jakubovics NS. Intermicrobial Interactions as a Driver for Community Composition and Stratification of Oral Biofilms. J Mol Biol 427 (2015): 3662-75.
10. Howell TH, Fiorellini JP, Blackburn P, et al. The effect of a mouthrinse based on nisin, a bacteriocin, on developing plaque and gingivitis in beagle dogs. J Clin Periodontol 20 (1993): 335-9.
11. Gao L, Kuraji R, Zhang MJ, et al. Nisin probiotic prevents inflammatory bone loss while promoting reparative proliferation and a healthy microbiome. NPJ Biofilms Microbiomes 8 (2022): 45.
12. Kindrachuk J, Jenssen H, Elliott M, et al. Manipulation of innate immunity by a bacterial secreted peptide: lantibiotic nisin Z is selectively immunomodulatory. Innate Immun 19 (2013): 315-27.
13. Fernandez L, Delgado S, Herrero H, et al. The bacteriocin nisin, an effective agent for the treatment of staphylococcal mastitis during lactation. J Hum Lact 24 (2008): 311-6.
14. Cao LT, Wu JQ, Xie F, et al. Efficacy of nisin in treatment of clinical mastitis in lactating dairy cows. J Dairy Sci 90 (2007): 3980-5.
15. Zhao C, Kuraji R, Ye C, et al. Nisin a probiotic bacteriocin mitigates brain microbiome dysbiosis and Alzheimer's disease-like neuroinflammation triggered by periodontal disease. J Neuroinflammation 20 (2023): 228.
16. Kuraji R, Ye C, Zhao C, et al. Nisin lantibiotic prevents NAFLD liver steatosis and mitochondrial oxidative stress following periodontal disease by abrogating oral, gut and liver dysbiosis. NPJ Biofilms Microbiomes 10 (2024): 3.
17. De Kwaadsteniet M, Doeschate KT, Dicks LM. Nisin F in the treatment of respiratory tract infections caused by Staphylococcus aureus. Lett Appl Microbiol 48 (2009): 65-70.
18. Kamarajan P, Hayami T, Matte B, et al. Nisin ZP, a Bacteriocin and Food Preservative, Inhibits Head and Neck Cancer Tumorigenesis and Prolongs Survival. PLoS One 10 (2015): e0131008.
19. Joo NE, Ritchie K, Kamarajan P, et al. Nisin, an apoptogenic bacteriocin and food preservative, attenuates HNSCC tumorigenesis via CHAC1. Cancer Med 1 (2012): 295-305.
20. Kamarajan P, Ateia I, Shin JM, et al. Periodontal pathogens promote cancer aggressivity via TLR/MyD88 triggered activation of Integrin/FAK signaling that is therapeutically reversible by a probiotic bacteriocin. PLoS Pathog 16 (2020): e1008881.
21. Jenab A, Roghanian R, Emtiazi G. Bacterial Natural Compounds with Anti-Inflammatory and Immunomodulatory Properties (Mini Review). Drug Des Devel Ther 14 (2020): 3787-801.
22. Malaczewska J, Kaczorek-Lukowska E. Nisin-A lantibiotic with immunomodulatory properties: A review. Peptides 137 (2021): 170479.
23. Tampa M, Mitran MI, Mitran CI, et al. Mediators of Inflammation - A Potential Source of Biomarkers in Oral Squamous Cell Carcinoma. J Immunol Res 2018 (2018): 1061780.
24. Hadler-Olsen E, Wirsing AM. Tissue-infiltrating immune cells as prognostic markers in oral squamous cell carcinoma: a systematic review and meta-analysis. Br J Cancer 120 (2019): 714-27.
25. Aral CA, Olcer SN, Aral K, et al. Oxidative stress, neutrophil elastase and IGFBP7 levels in patients with oropharyngeal cancer and chronic periodontitis. Oral Dis (2020).
26. Shin JM, Gwak JW, Kamarajan P, et al. Biomedical applications of nisin. J Appl Microbiol 120 (2016): 1449-65.
27. Fu W, Kapila, YL Nisin. A Probiotic Bacteriocin, Combined with Limited Chemoradiation Therapy in Head and Neck Cancer. Arc Clin Med Case Rep 5 (2021): 531-6.
28. Ye Q, He A, Wu Y, Kapila YL. Nisin ZP Combined with Limited Chemotherapy in Oropharyngeal Squamous Cell Carcinoma: A Case Report. Arch Clin Med Case Rep 8 ( 2024).
29. Reddy KV, Aranha C, Gupta SM,et al. Evaluation of antimicrobial peptide nisin as a safe vaginal contraceptive agent in rabbits: in vitro and in vivo studies. Reproduction 128 (2004): 117-26.
30. Soltani S, Hammami R, Cotter PD, et al. Bacteriocins as a new generation of antimicrobials: toxicity aspects and regulations. FEMS Microbiol Rev 45 (2021).
31. Panina I, Krylov N, Nolde D, et al. Environmental and dynamic effects explain how nisin captures membrane-bound lipid II. Sci Rep 10 (2020): 8821.
32. Saitta F, Motta P, Barbiroli A, et al. Influence of Free Fatty Acids on Lipid Membrane-Nisin Interaction. Langmuir 36 (2020): 13535-44.
33. Scherer KM, Spille JH, Sahl HG, et al. The lantibiotic nisin induces lipid II aggregation, causing membrane instability and vesicle budding. Biophys J 108 (2015): 1114-24.
34. Field D, Fernandez de Ullivarri M, Ross RP, et al. After a century of nisin research - where are we now? FEMS Microbiol Rev 47 (2023).
35. Dreyer L, Smith C, Deane SM, et al. Migration of Bacteriocins Across Gastrointestinal Epithelial and Vascular Endothelial Cells, as Determined Using In Vitro Simulations. Sci Rep 9 (2019): 11481.
36. Tramer J, Fowler GG. Estimation of nisin in foods. J Sci Food Agric 15 (1964): 522-528.
37. Pongtharangkul T, Demirci A. Evaluation of agar diffusion bioassay for nisin quantification. Appl Microbiol Biotechnol 65 (2004): 268-72.
38. Falahee M, Adams MR, Dale JW, et al. An enzyme immunoassay for nisin. Int J Food Sci Technol 25 (1990): 590-595.
39. Falahee MB, Adams MR. Cross-reactivity of bacteriocins from lactic acid bacteria and lantibiotics in a nisin bioassay and ELISA. Lett Appl Microbiol 15 (1992): 214-6.
40. Daoudi L, Turcotte C, Lacroix C, et al. Production and characterization of anti-nisin Z monoclonal antibodies: suitability for distinguishing active from inactive forms through a competitive enzyme immunoassay. Appl Microbiol Biotechnol 56 (2001): 114-9.
41. Walstrom G, and Saris PEJ. A nisin bioassay based on bioluminescence. Appl Environ Microbiol. 1992;1999:3742-3745.
42. Reunanen J. Lantibiotic nisin and its detection methods. Thesis University of Helsinki, Finland (2007).
43. Immonen N, Karp M. Bioluminescence-based bioassays for rapid detection of nisin in food. Biosens Bioelectron 22 (2007): 1982-7.
44. Zendo T, Nakayama J, Fujita K, et al. Bacteriocin detection by liquid chromatography/mass spectrometry for rapid identification. J Appl Microbiol 104 (2008): 499-507.
45. Cheese determination of nisin A content by LC-MS and LC-MS-MS. . ISO/TS 27106:2009 (IDF/RM 217:2009) International organization for standardization, Geneva, Switzerland (2009).
46. Schneider N, Werkmeister K, Pischetsrieder M. Analysis of nisin A, nisin Z and their degradation products by LCMS/MS. Food Chem 127 (2011): 847-54.
47. Fuselli F, Guarino, C, Mantia AL, et al. Multi-detection of preservatives in cheese by liquid chromatography-tandem mass spetrometry. J Chromatogr B: Analyt Technol Biomed Life Sci 906 (2012): 9-18.
48. Ko K, Park SR, Lee CA, et al. Analysis method for determination of nisin A and nisin Z in cow milk by using liquid chromatography-tandem mass spectrometry. J Dairy Sci 98 (2015): 1435-1442.
49. Mehlis BaK, U. Liquid chromatography/mass spectrometry of peptides of biological samples. Anal Chim Acta 352 (1997): 71-83.
50. Jami-Alahmadi Y, Pandey V, Mayank AK, et al. A Robust Method for Packing High Resolution C18 RP-nano-HPLC Columns. J Vis Exp 171 (2021).
51. Khristenko N, Domon B. Quantification of proteins in urine samples using targeted mass spectrometry methods. Methods Mol Biol 1243 (2015): 207-20.
52. MacLean B, Tomazela DM, Shulman N, et al. Skyline: an open source document editor for creating and analyzing targeted proteomics experiments. Bioinformatics 26 (2010): 966-8.
53. O'Reilly C, Grimaud GM, Coakley M, et al. Modulation of the gut microbiome with nisin. Sci Rep 13 (2023): 7899.

Supplementary Files:

Supplemental Table S1: Molecule Transition Results.

Supplementary Figures:

Figure S1: LC-MS/MS Analysis of nisin peptide in urine. Nisin was enriched from urine (sample 2) and analyzed by parallel reaction monitoring on a Thermo Fusion Lumos mass spectrometer.  Representative extracted ion chromatograms of the intact +5 precursor ion (top) and fragment ions after collision induced dissociation of the precursor (bottom) are shown.

Figure S2: LC-MS/MS Analysis of nisin peptide in urine. Nisin was enriched from urine (sample 3) and analyzed by parallel reaction monitoring on a Thermo Fusion Lumos mass spectrometer.  Representative extracted ion chromatograms of the intact +5 precursor ion (top) and fragment ions after collision induced dissociation of the precursor (bottom) are shown.

Figure S3: LC-MS/MS Analysis of nisin peptide in urine. Nisin was enriched from urine (sample 4) and analyzed by parallel reaction monitoring on a Thermo Fusion Lumos mass spectrometer.  Representative extracted ion chromatograms of the intact +5 precursor ion (top) and fragment ions after collision induced dissociation of the precursor (bottom) are shown.

Figure S4: LC-MS/MS Analysis of nisin peptide in urine. Nisin was enriched from urine (sample 5) and analyzed by parallel reaction monitoring on a Thermo Fusion Lumos mass spectrometer.  Representative extracted ion chromatograms of the intact +5 precursor ion (top) and fragment ions after collision induced dissociation of the precursor (bottom) are shown.

Figure S5: LC-MS/MS Analysis of nisin peptide in urine. Nisin was enriched from urine (sample 6) and analyzed by parallel reaction monitoring on a Thermo Fusion Lumos mass spectrometer.  Representative extracted ion chromatograms of the intact +5 precursor ion (top) and fragment ions after collision induced dissociation of the precursor (bottom)are shown.

Figure S6: LC-MS/MS Analysis of nisin standards. Nisin (60 ng) was analyzed by parallel reaction monitoring on a Thermo Fusion Lumos mass spectrometer.  Representative extracted ion chromatograms of the intact +5 precursor ion (top) and fragment ions after collision induced dissociation of the precursor (bottom)are shown.

Figure S7: LC-MS/MS Analysis of nisin standards. Nisin (120 ng) was analyzed by parallel reaction monitoring on a Thermo Fusion Lumos mass spectrometer.  Representative extracted ion chromatograms of the intact +5 precursor ion (top) and fragment ions after collision induced dissociation of the precursor (bottom) are shown.

Figure S8: LC-MS/MS Analysis of nisin standards. Nisin (250 ng) was analyzed by parallel reaction monitoring on a Thermo Fusion Lumos mass spectrometer.  Representative extracted ion chromatograms of the intact +5 precursor ion (top) and fragment ions after collision induced dissociation of the precursor (bottom) are shown.

Figure S9: LC-MS/MS Analysis of nisin standards. Nisin (500 ng) was analyzed by parallel reaction monitoring on a Thermo Fusion Lumos mass spectrometer.  Representative extracted ion chromatograms of the intact +5 precursor ion (top) and fragment ions after collision induced dissociation of the precursor (bottom) are shown.

Figure S10: LC-MS/MS Analysis of nisin standards. Nisin (1000 ng) was analyzed by parallel reaction monitoring on a Thermo Fusion Lumos mass spectrometer.  Representative extracted ion chromatograms of the intact +5 precursor ion (top) and fragment ions after collision induced dissociation of the precursor (bottom) are shown.
